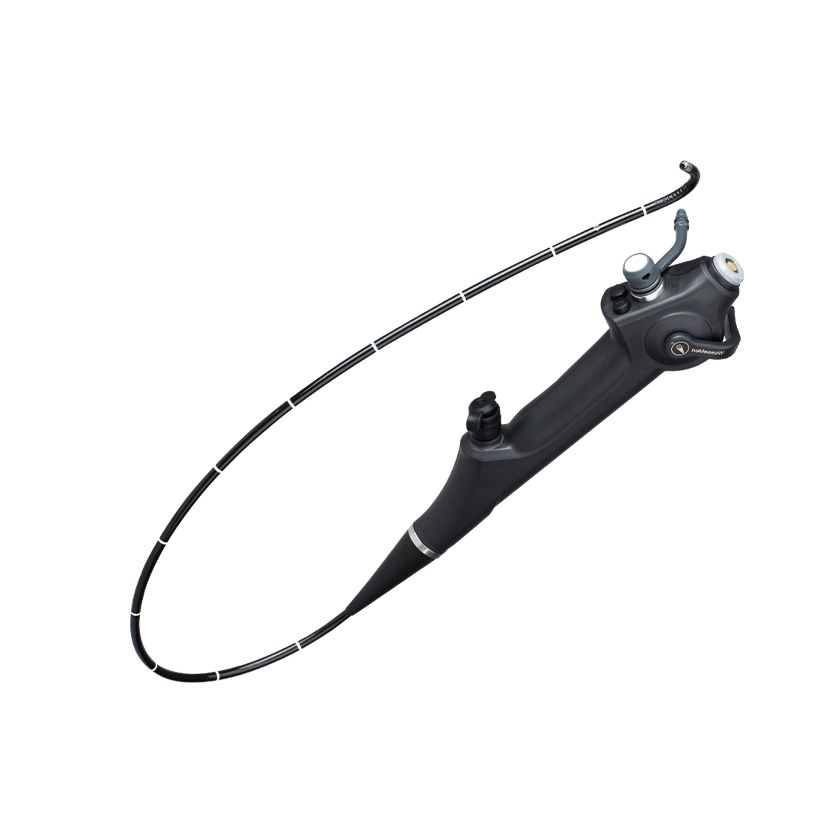

RF15A
Reusable Video Bronchoscope
Pulmonary
-
High Definition
-
Reusable
-
IPX7
High Definition
Reusable
IPX7

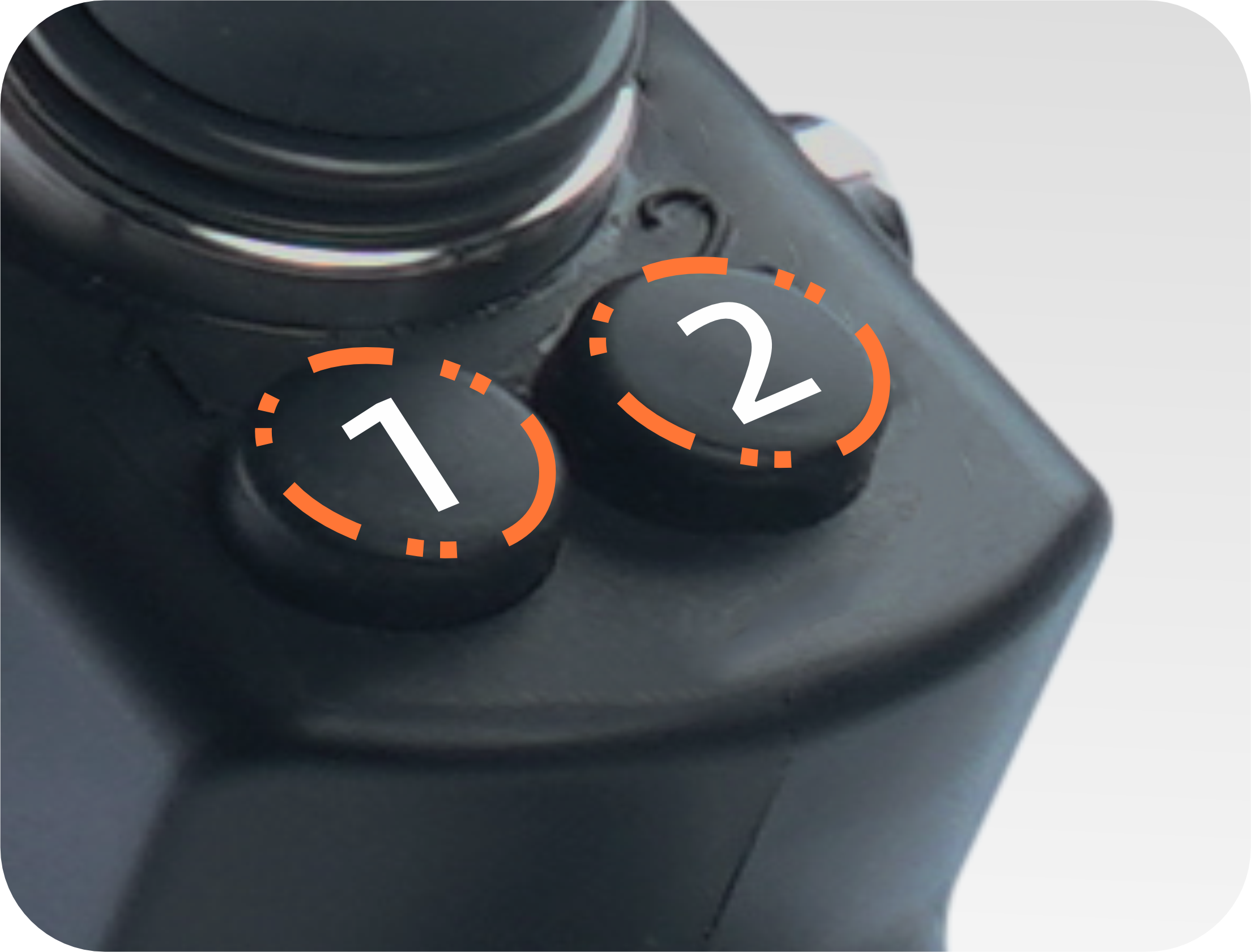

① Short press to adjust brightness/long press to zoom or freeze.
② Short press to take photo/long press to record video.

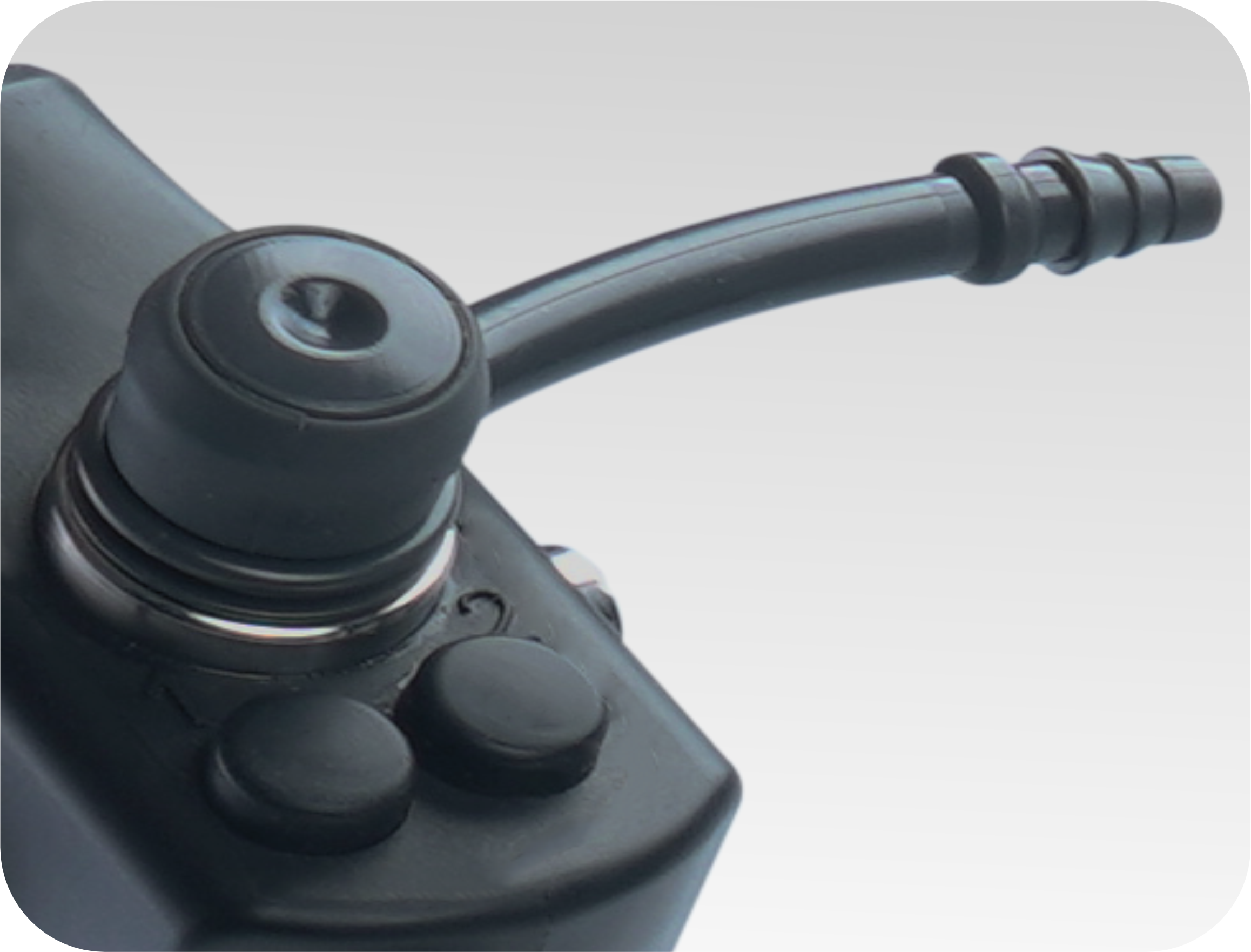

Integrated suction effectively removes secretions and blood,improving visibility and facilitating effcient fluid management during the procedure.

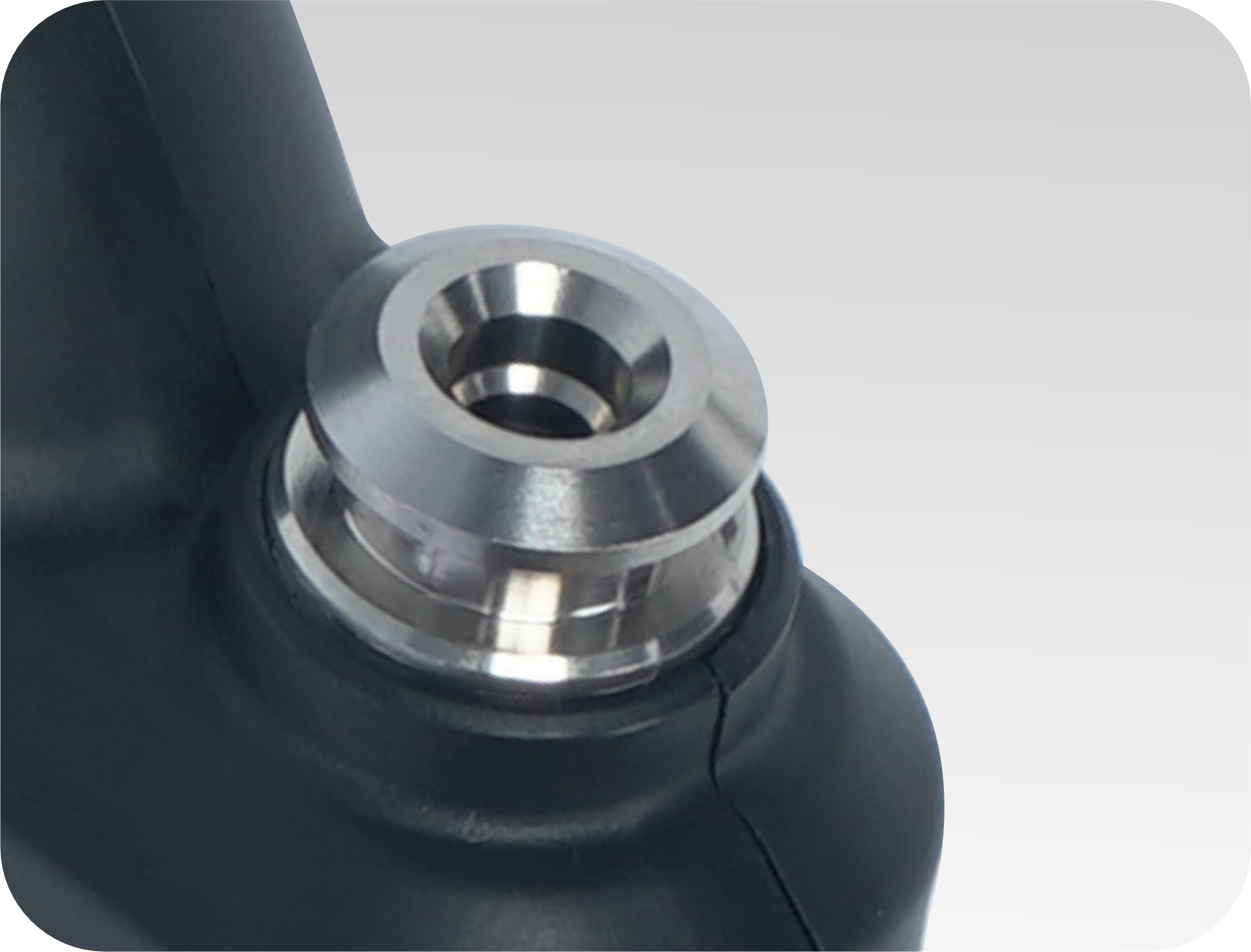

Large channel, suitable for a variety of tools,unobstructed.
| Insertion tube OD | 4.0mm | 4.9mm | 5.5mm |
| Instrument channel diameter | 1.2mm | 2.2mm | 2.6mm |
| Angulation range | U180°/D130° | U180°/D130° | U180°/D130° |
| Working length | 600mm±10% | 600mm±10% | 600mm±10% |
| Depth of field | 3–150mm | 3–150mm | 3–150mm |
| Field of view | 100° | 100° | 100° |
| Image resolution | 1280*720P | 1280*720P | 1280*720P |
| Insertion tube OD | 4.0mm | 4.9mm | 5.5mm |
| Instrument channel diameter | 1.2mm | 2.2mm | 2.6mm |
| Angulation range | U180°/D130° | U180°/D130° | U180°/D130° |
| Working length | 600mm±10% | 600mm±10% | 600mm±10% |
| Depth of field | 3–150mm | 3–150mm | 3–150mm |
| Field of view | 100° | 100° | 100° |
| Image resolution | 1280*720P | 1280*720P | 1280*720P |
